PRODUCTION INFORMATION
The Electric Bike Display from Bafang is in a high quality bicycle speedmeter with 5-PIN high contrast TFT/LCD display easily to connect with Bafang mid drive motor. This easy-to-use display provides real-time data about your ride, including power,speed, distance, battery level and time, which is necessary for any-ebikes to install and use.
From the instrument screen, the user interface is easy to read and the operation is intuitive. The interface is touch-proof, waterproof and dustproof and has an IP 65 degree of protection.
Electric Parameters
24V/36V battery supply(48V optional)
Rated operating current:10mA
Max operating current:30mA
Off leakage current＜1uA
Max output current to controller:50mA
9-level Assist:0-3/0-5/0-9,optional
Operating temperature:-20~70℃
Storage temperature:-30~80℃
IP:65
LCD 800S
Contents of display:
×USB charge port,Voltage/Power indicator,Speed indicator,Lock indicator
√Mileage indicator
TFT 860C
Contents of display:
√USB charge port,Voltage/Power indicator,Speed indicator,Lock indicator,Mileage indicator
TFT 750C-BLE
Contents of display:
×USB charge port,Speed indicator
√Voltage/Power indicator,Mileage indicator,Lock indicator

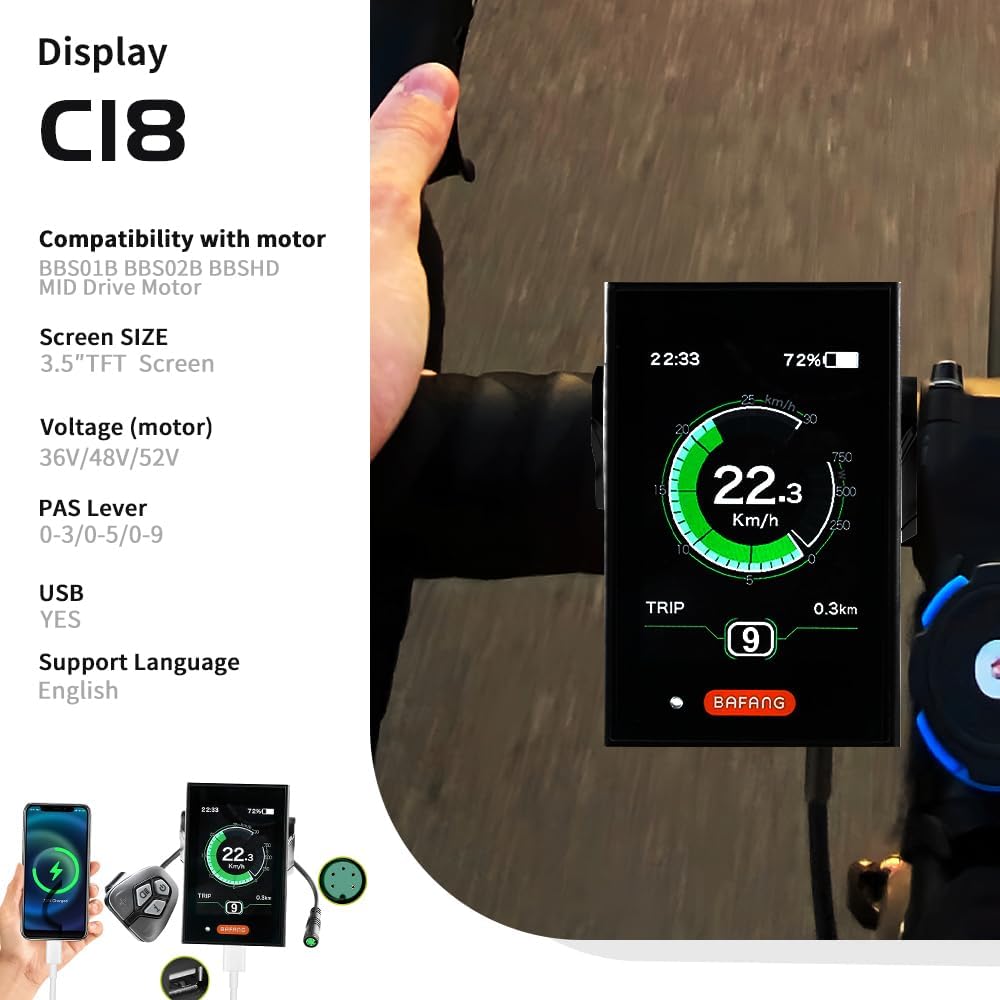

TFT C18
Product shell is PC;the liquid crystal display is made of hardened PMMA.
Contents of display:
√USB charge port,Voltage/Power indicator,Speed indicator,Lock indicator,Mileage indicator
Touch Screen T1
Product shell is PC;the liquid crystal display is made of hardened PMMA.
Contents of display:
√USB charge port,Voltage/Power indicator,Speed indicator,Lock indicator,Mileage indicator
users can touch this screen to switch Pages.
Compatible with Bafang Mid Drive motor BBS01B BBS02B BBSHD.
Speed display: AVG SPEED, MAX SPEED, Real-time
Mileage indicator: ODO/Trip distance/Clock/Riding time.
Equipped with Waterproof IP65 which can help users use in sunny or rainy day.
